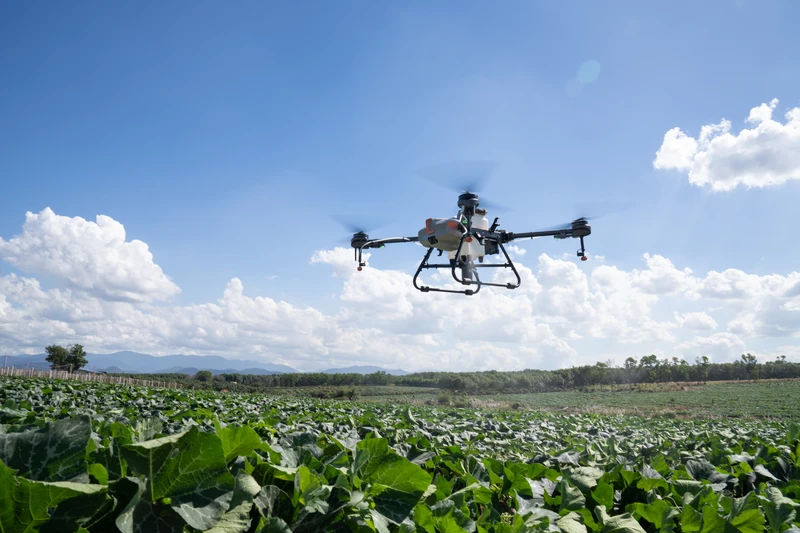

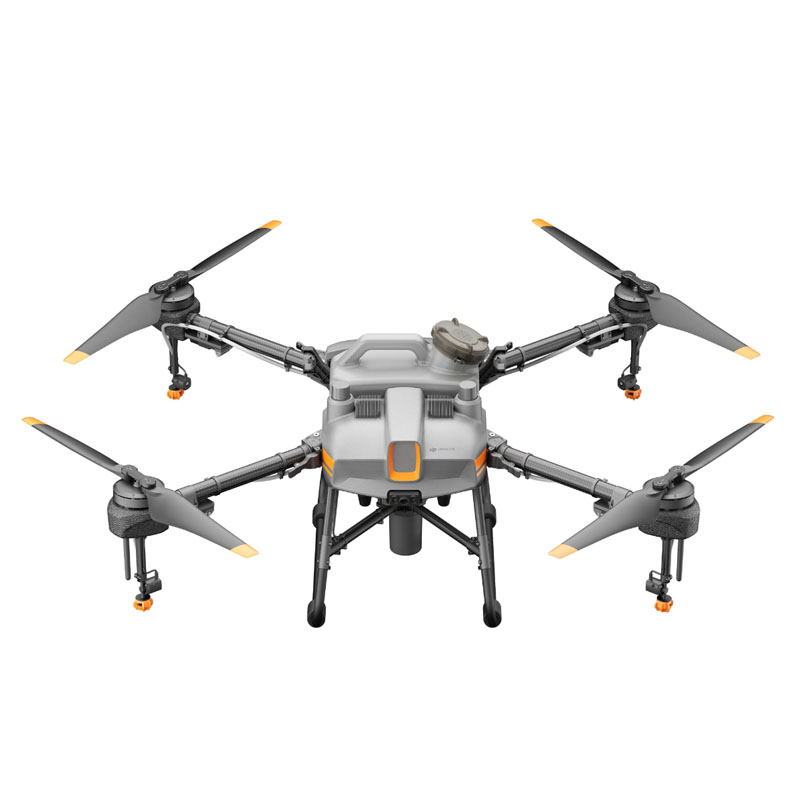

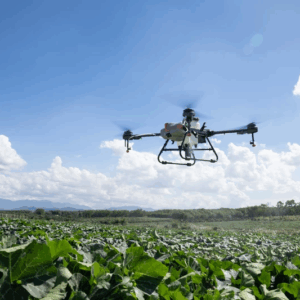

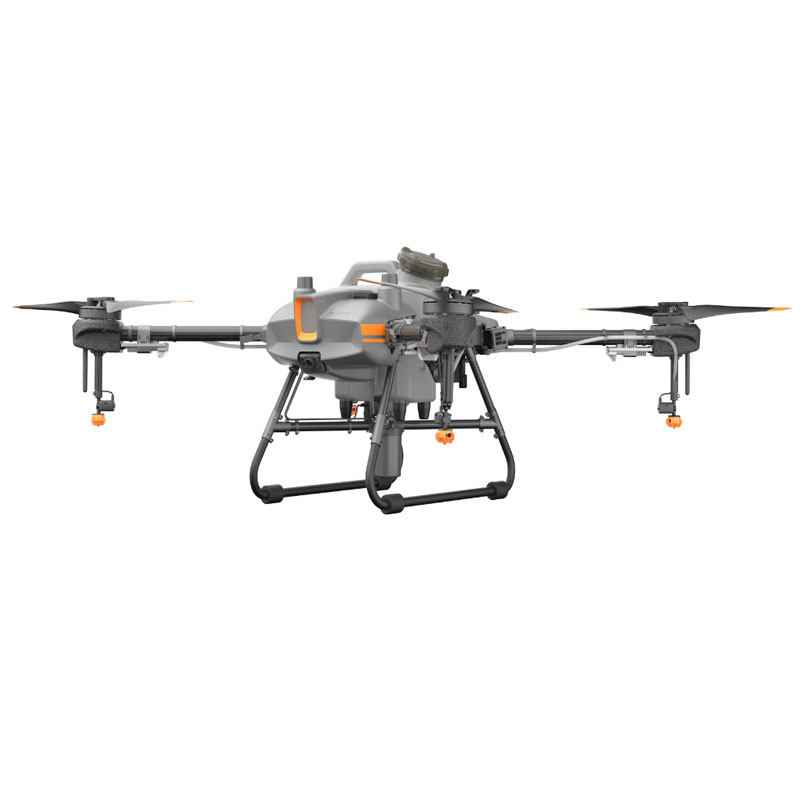

DJI Agras T10 Spraying Drone
$21,690.00
The T10 is essentially a smaller-scale version of the T30 – it shares most of the same tech smarts (e.g. uses the same Agras app to fly, same front and rear FPV cameras and same spherical radar system), but has around 1/3 the spray tank capacity. Whilst its called the ‘T10’, the spray tank capacity is actually 8L (where the line is marked on the tank).
Product Specifications
AIRFRAME
PROPULSION SYSTEM
Max Working Current (Continuous): 32 A
Foldable Propellers (R3390)
Diameter × Pitch: 33×9 in
SPRAYING SYSTEM
Spray Tank
Volume: Fully loaded: 10 L
Operating Payload: Fully loaded: 10 kg
Nozzles
Model: SX11001VS (standard), SX110015VS (optional, purchase separately), XR11002VS (optional, purchase separately)
Quantity: 4
Max Spray Rate: SX11001VS: 1.8 L/min, SX110015VS: 2.4 L/min, XR11002VS: 3L/min
Spray Width: 3-5.5 m (4 nozzles, at a height of 1.5-3 m above crops)
Droplet Size: SX11001VS: 130-250 μm, SX110015VS: 170-265 μm, XR11002VS: 190-300 μm (subject to operating environment and spray rate)
Flow Meter
Measurement Range: 0.25-20 L/min
Error: <±2%
Measurable Liquid: Conductivity >50 μS/cm (liquids such as tap water or pesticides that contain water)
OMNIDIRECTIONAL DIGITAL RADAR
Model: RD2424R
Operating Frequency: SRRC/NCC/FCC/MIC/KCC/CE: 24.05-24.25 GHz
Power Consumption: 12 W
Transmission Power (EIRP): SRRC: ≤13 dBm; NCC/MIC/KCC/CE/FCC: ≤20 dBm
Altitude Detection & Terrain Follow:
Altitude detection range: 1-30 m
Stabilization working range: 1.5-15 m
Max slope in Mountain mode: 35°
Obstacle Avoidance:
Obstacle sensing range: 1.5-30 m
FOV: Horizontal: 360°, Vertical: ±15°
Working conditions: flying higher than 1.5 m over the obstacle at a speed lower than 7 m/s
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Obstacle avoidance direction: omnidirectional obstacle avoidance in the horizontal direction.
IP Rating: IP67
UPWARD RADAR
Model: RD2414U
Operating Frequency: SRRC/NCC/FCC/MIC/KCC/CE: 24.05-24.25 GHz
Power Consumption: 4 W
Transmission Power (EIRP): SRRC: ≤13 dBm; NCC/MIC/KCC/CE/FCC: ≤20 dBm
Obstacle Avoidance:
Obstacle sensing range: 1.5-15 m
FOV: 80°
Working conditions: available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft.
Safety limit distance: 2 m (distance between the highest point of the aircraft and the lowest point of the obstacle after braking)
Obstacle avoidance direction: Upward
IP Rating: IP67
FPV CAMERAS
FOV: Horizontal: 129°,Vertical: 82°
Resolution: 1280×720 15-30fps
FPV Spotlights: FOV: 120°,Max brightness: 13.2 lux at 5 m of direct light
FLIGHT PARAMETERS
Operating Frequency:
SRRC/NCC/FCC/CE/MIC/KCC: 2.4000-2.4835 GHz
SRRC/NCC/FCC/CE: 5.725-5.850 GHz[2]
Transmission Power (EIRP):
2.4 GHz
SRRC/CE/MIC/KCC: ≤20 dBm, FCC/NCC: ≤31.5 dBm
5.8 GHz
FCC/SRRC/NCC: ≤29.5 dBm, CE: ≤14 dBm
Total Weight (exc. battery): 13 kg
Max Takeoff Weight:
Max takeoff weight for spraying: 26.8 kg (at sea level)
Hovering Accuracy Range (with strong GNSS signal):
D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm
D-RTK disabled:
Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)
RTK/GNSS Operating Frequency:
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5[3]
GNSS: GPS L1, GLONASS F1, Galileo E1[3]
Battery: DJI-approved flight battery (BAX501-9500mAh-51.8V)
Max Power Consumption: 3700 W
Hovering Time:
19 min (takeoff weight of 16 kg with an 9500 mAh battery)
8.7 min (takeoff weight of 26 kg with an 9500 mAh battery)
Max Tilt Angle: 15°
Max Operating Speed: 7 m/s
Max Flying Speed: 10 m/s (with strong GNSS signal)
Max Wind Resistance: 8 m/s
Max Service Ceiling Above Sea Level: 4500 m
Recommended Operating Humidity: <93%
Recommended Operating Temperature: 0° to 45° C (32° to 113° F)
REMOTE CONTROLLER
Model: RM500-ENT
Screen: 5.5-in screen, 1920×1080, 1000 cd/m2, Android system
RAM: 4GB
Built-in Battery: 18650 Li-ion (5000 mAh @ 7.2 V)
GNSS: GPS+GLONASS
Power Consumption: 18 W
Operating Temperature: 0° to 45° C (14° to 113° F)
Charging Environment Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: -30° to 60° C (-22° to 140° F) (stored for no more than one month with a built-in battery power of 40% to 60%)
OcuSync Enterprise
Operating Frequency:
SRRC/NCC/FCC/CE/MIC/KCC: 2.4000-2.4835 GHz
SRRC/NCC/FCC/CE: 5.725-5.850 GHz[2]
Effective Transmission Distance (Unobstructed, free of interference): FCC/NCC: 7 km, SRRC: 5 km, MIC/KCC/CE: 4 km
Transmission Power (EIRP):
2.4 GHz
SRRC/CE/MIC/KCC: ≤20 dBm, FCC/NCC: ≤30.5 dBm
5.8 GHz
SRRC: ≤21.5 dBm FCC/NCC: ≤29.5 dBm, CE: ≤14 dBm
Wi-Fi
Protocol:
Wi-Fi Direct, Wi-Fi Display, 802.11a/g/n/ac
Wi-Fi with 2×2 MIMO
Operating Frequency:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz[2]
Transmission Power (EIRP):
2.4 GHz
SRRC/CE: 18.5 dBm, NCC/FCC /MIC/KCC: 20.5 dBm
5.2 GHz
SRRC/NCC/FCC/CE/MIC: 14 dBm, KCC: 10 dBm
5.8 GHz
SRRC/NCC/FCC: 18 dBm, CE/KCC: 12 dBm
Bluetooth
Protocol: Bluetooth 4.2
Operating Frequency: 2.4000-2.4835 GHz
Transmission Power (EIRP): SRRC/NCC/FCC/CE/MIC/KCC: 6.5 dBm
REMOTE CONTROLLER INTELLIGENT BATTERY
Model: WB37-4920mAh-7.6V
Battery Type: 2S LiPo
Capacity: 4920 mAh
Voltage: 7.6 V
Energy: 37.39 Wh
Charging Environment Temperature: 5° to 40° C (41° to 104° F)
INTELLIGENT BATTERY CHARGING HUB
Model: WCH2
Input Voltage: 17.3-26.2 V
Output Voltage and Current: 8.7 V, 6 A
Operating Temperature: 5° to 40° C (41° to 104° F)
AC POWER ADAPTER
Model: A14-057N1A
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 17.4 V
Rated Power: 57 W
