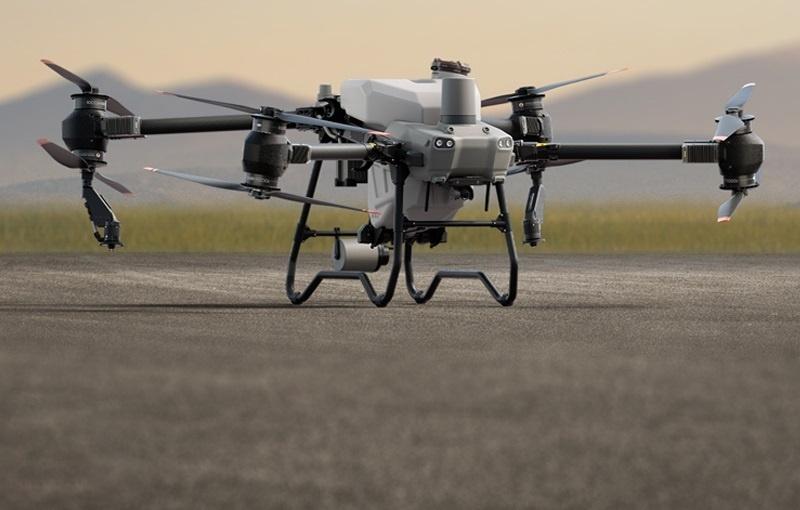

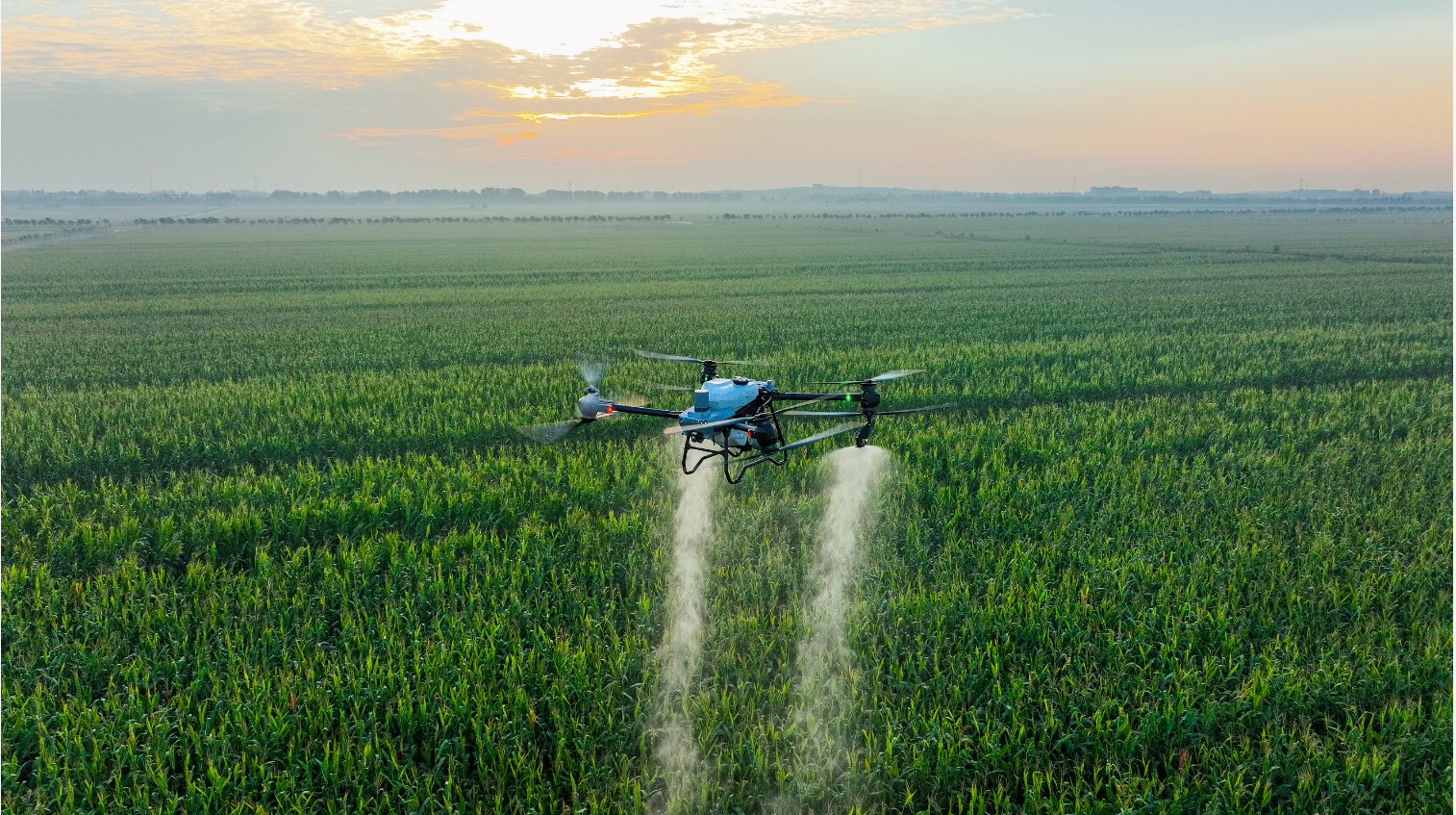

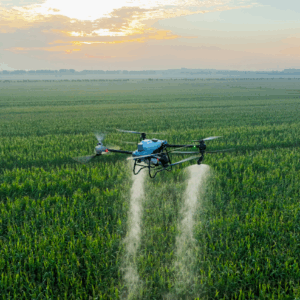

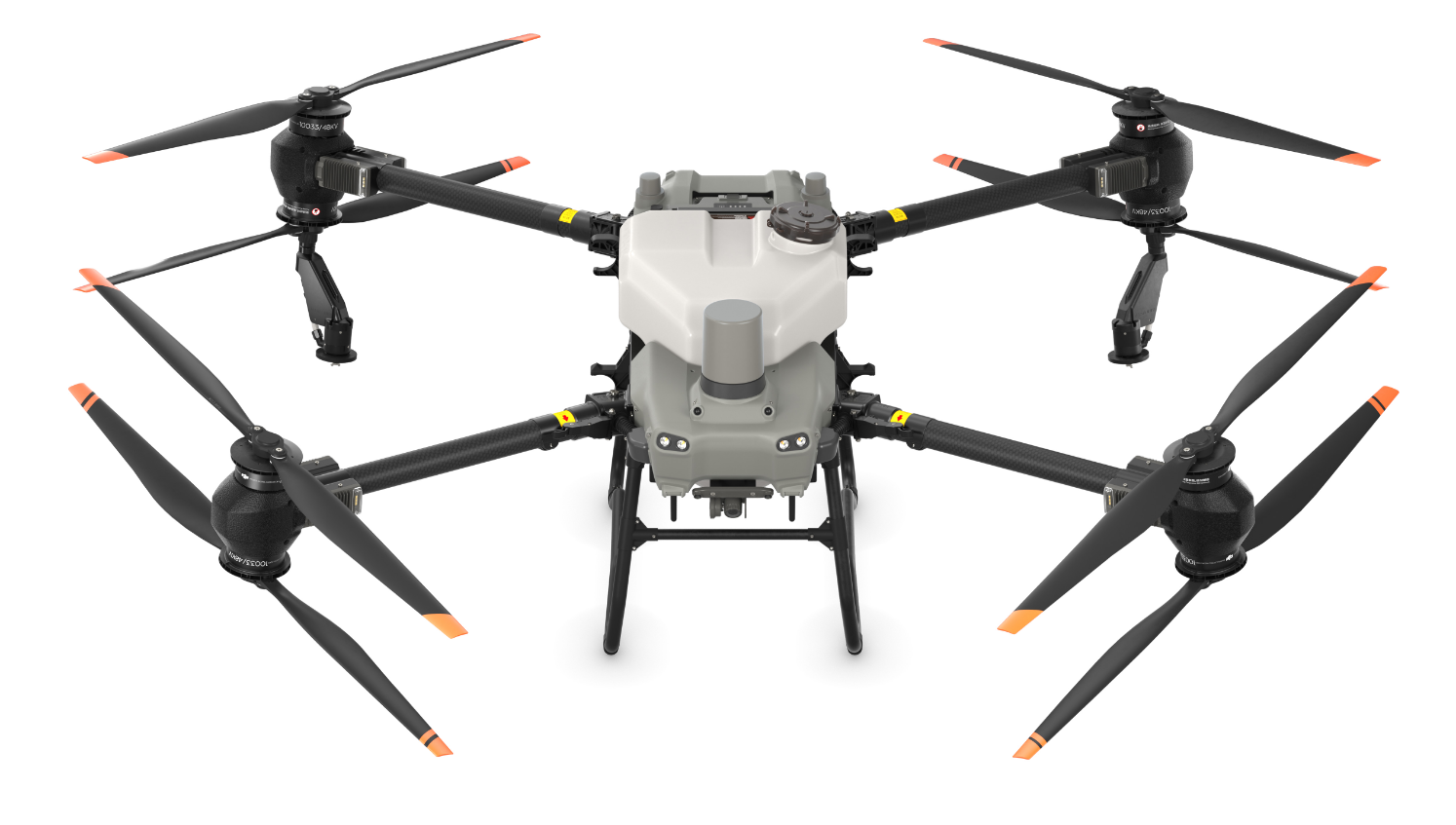

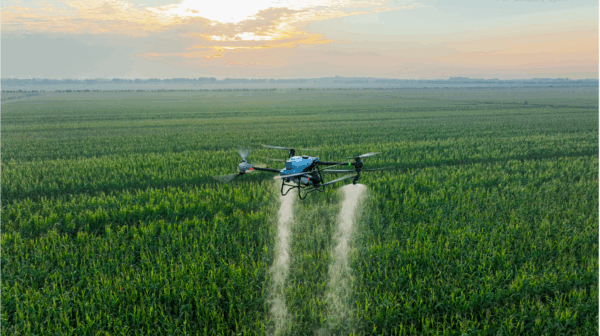

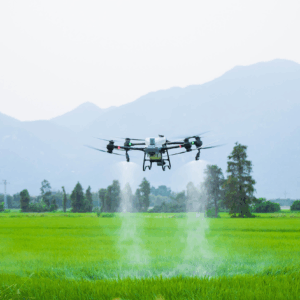

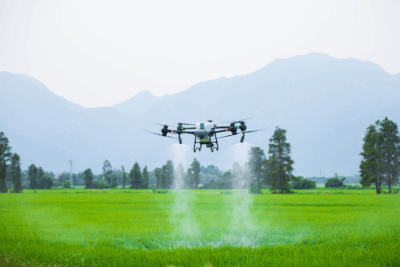

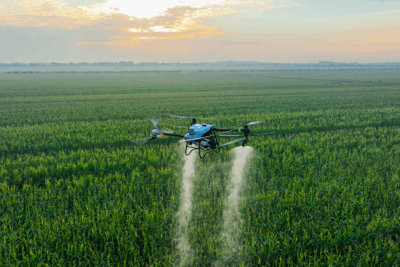

DJI Agras T50 Spray Drone

• Weight

• 39.9 kg (excl. battery)
  52 kg (incl. battery)

• Max Takeoff Weight^[1]

• Max takeoff weight for spraying: 92 kg (at sea level)
  Max takeoff weight for spreading: 103 kg (at sea level)

• Max Diagonal Wheelbase

• 2200 mm

• Dimensions

• 2800×3085×820 mm (arms and propellers unfolded)
  1590×1900×820 mm (arms unfolded and propellers folded)
  1115×750×900 mm (arms and propellers folded)

• Hovering Accuracy Range (with strong GNSS signal)

• D-RTK enabled:
  Horizontal: ±10 cm, Vertical: ±10 cm
  D-RTK disabled:
  Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

• RTK/GNSSOperating Frequency

• RTK:
  GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
  GNSS:
  GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

• Max Configurable Flight Radius

• 2000 m

• Max Wind Resistance

• 6 m/s

Propulsion System – Motors

• Stator Size

• 100×33 mm

• KV

• 48 rpm/V

• Power

• 4000 W/rotor

Propulsion System – Propellers

• Material

• Nylon carbon fiber filament

• Dimension

• 54 in (1371.6 mm)

• Propeller Rotation Diameter

• 1375 mm

• Quantity

• 8

Dual Atomizing Spraying System – Spray Tank

• Material

• Plastic (HDPE)

• Volume

• 40 L

• Operating Payload ^[1]

• 40 kg^[1]

• Quantity

• 1

Dual Atomizing Spraying System – Sprinklers

• Model

• LX8060SZ

• Quantity

• 2

• Nozzle Distance

• 1570 mm（Rear Nozzles）

• Droplet Size

• 50-500 μm

• Effective Spray Width ^[2]

• 4-11 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System – Delivery Pumps

• Type

• Impreller pump (magnetic drive)

• Quantity

• 2

• Single Pump Flow Rate

• 0-12 L/min

• Max Flow Rate

• 16 L/min (2 nozzles); 24 L/min (4 nozzles)

T50 Spreading System

• Compatible Material Diameter

• 0.5-5 mm dry granules

• Spread Tank Volume

• 75 L

• Spread Tank Internal Load ^[10]

• 50 kg

• Spread Width

• 8 m

Phased Array Radar System

• Model

• RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)

• Terrain Follow

• Max slope in Mountain mode: 20°
  Altitude detection range: 1-50 m
  Stabilization working range: 1.5-30 m

• Obstacle Avoidance ^[4]

• Obstacle sensing range (multidirectional): 1-50 m
  FOV:
  Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  Rear phased array radar: vertical 360°, horizontal ±45°
  Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
  Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
  Sensing direction: 360° multidirectional sensing

Binocular Vision System

• Measurement range

• 0.5-29 m

• Effective Sensing Speed

• ≤10 m/s

• FOV

• Horizontal: 90°, Vertical: 106°

• Operating Environment

• Adequate light and discernible surroundings

Remote Controller

• Model

• RM700B

• Operating Frequency ^[5]

• 2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance

• 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)

• Wi-Fi Protocol

• Wi-Fi 6

• Wi-Fi Operating Frequency ^[5]

• 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Operating Frequency

• 2.4000-2.4835 GHz

• GNSS

• GPS+Galileo+BeiDou

• Screen

• 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

• Storage Temperature Range

• Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Six months to one year: -30° to 30° C (-22° to 86° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

• 3 hours 18 minutes

• External Battery Runtime

• 2 hours 42 minutes

• Charging Type

• It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

• Charging Time

• 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB1560 Intelligent Flight Battery

• Model

• DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)

• Weight

• Approx. 12.1 kg

• Capacity

• 30000 mAh

• Nominal Voltage

• 52.22 V

D12000i Multifunctional Inverter Generator

• Output Channel

• 1. DC charging output 42-59.92V/9000W
  2.Power supply for air-cooled heat sink 12 V/6 A
  3.AC output 230V/1500W or 120V/750W ^[8]

• Battery Charging Time

• To fully charge one battery (T40 battery) takes 9-12 mins

• Fuel Tank Capacity

• 30 L

• Starting Method

• Starting the Generator via the One-Button Start Switch

• Max Power of Engine

• 12000 W

• Fuel Type

• Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%
  (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

• Reference Fuel Consumption ^[9]

• 500 ml/kWh

• Engine Oil Model

• SJ 10W-40

C10000 Intelligent Power Supply

• Model Number

• CSX702-9500

• Dimensions

• 400 × 266 × 120 mm

• Weight

• Approx. 11.4 kg

• Input/Output

• Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX
  Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX
  Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX
  Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX
  Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX
  Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX

• Charging Time

• Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)

• Protection Functions

• Over-voltage, over-charge, under-voltage and over-temperature protection.

• Charging Safety

• AC wire protection, power wire protection, and charge connector protection

Relay

• Model

• RL01-65

• Dimensions

• 120×110×100 mm

• Weight

• ≤575 g

• Input Voltage ^[6]

• 9 V3 A / 12 V2.5 A / 15 V2 A

• Power Consumption

• 9 W (SRRC), 12 W (FCC)

• Capacity

• 6500 mAh

• Operating Time

• 4 hours

• Operating Frequency ^[5]

• 2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance

• 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
  (unobstructed, free of interference, and at a flight altitude of 2.5 m)

• Charging Time

• 2 hours and 20 minutes (when using a standard DJI charger)

• IP Rating ^[6]

• IP55
